R&D

Technical Introduction

We produce automotive body parts by applying the hot stamping process.


The hot stamping process is a technology that uses electronic control technology to manufacture ultra-light and ultra-high strength parts by simultaneously molding and cooling in a mold after heating at a high temperature of 950 degrees or more. The increased strength of the product manufactured by the hot stamping process, will enhance safety and reduced the product weight and the vehicle weight as well.

We produce automotive body parts
by applying the hot stamping process.

The hot stamping process is a technology that uses electronic control technology to manufacture ultra-light
and ultra-high strength parts by simultaneously molding and cooling in a mold
after heating at a high temperature of 950 degrees or more. The increased strength of the product manufactured
by the hot stamping process, will enhance safety and reduced the product weight and the vehicle weight as well.

Technical Information

Myungshin Industries, which creates a flawless/new technology corporate culture, produces diverse technologies and construction methods by running its own Technology Research Institute to meet customer needs and produce improved quality products.

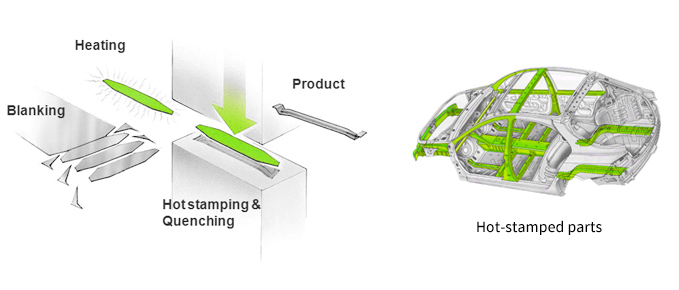

Hot Stamping Method

Development Effect

1. Realize weight reduction

  • 15% lighter body weight by removing reinforcement while having equal or greater strength than traditional products
  • It is possible to respond to environmental laws and regulations regarding CO² in automobile exhaust gas by realizing car light weight

2. Realization of high strength

  • Through the heat treatment effect of boron steel, it is possible to manufacture a high-strength body of 1,500 MPa class
  • It is possible to respond to increasingly stringent vehicle crashes and safety regulations by realizing high strength

 3. Realization of localization

  • Through localization of the hot stamping line, it is possible to not only secure technology but also suppress the cost increase of products.

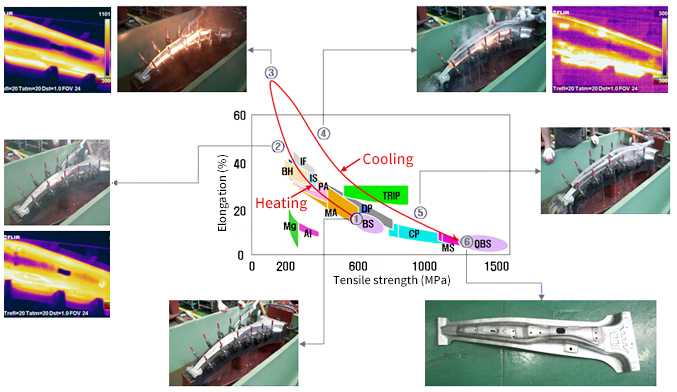

Local heat treatment method

Development Effect

1. Realization of light weight

  • Weight reduction of 10% or more while maintaining strength equal to or greater than that of existing ones
  • In addition to responding to environmental regulations by realizing light weight, it is possible to respond to collision and safety regulations by increasing the strength of 1,400 MPa or more.

2. Realization of cost reduction

  • Cost reduction effect of more than 10% by developing local heat treatment method through high frequency induction heating

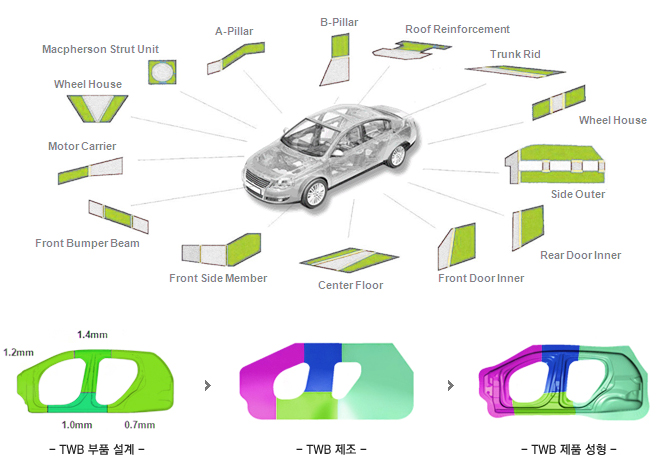

TWB (Tailor Welded Blank) method

Development Effect

1. Realization of light weight

  • Light weight in the range having the same effect as existing products through structural analysis and test evaluation

  • It is possible to respond to environmental regulations by reducing fuel and exhaust gas

2. Realization of cost reduction

  • 6.13% cost reduction effect by developing TWB method
  • It is possible to respond to increasingly stringent vehicle crashes and safety regulations by realizing high strength

3. Welding Type

  • Laser Welding Type : Robot Type, Gantry Type
  • Mash Seam Welding Type

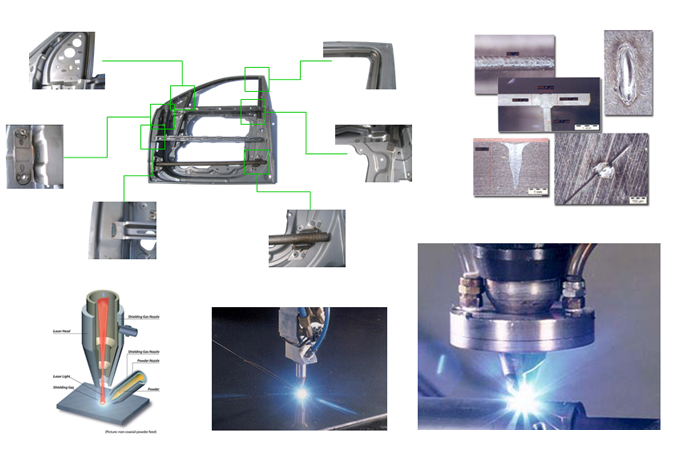

Laser welding

Development Effect

1. Realization of production speed improvement with CO 2 and Nd:YAG laser welding

-  RWS (Remote Welding System) provides high productivity compared to spot welding of existing methods

2. Weight reduction of the body by reducing the flange of the welded part and increasing the degree of freedom in car body design by one-side welding

3. Linear type welding increases the rigidity of the welded part compared to the existing method

4. Realization of production speed improvement with CO 2 and Nd:YAG laser welding

5. Easy to apply to welding of high-tensile steel, non-ferrous metals and dissimilar metals, real-time quality inspection possible

Future Tasks

1. FMS optimal system configuration

2. Optimal clamping method for work pieces

3. Improvement of shape precision of parts to be welded

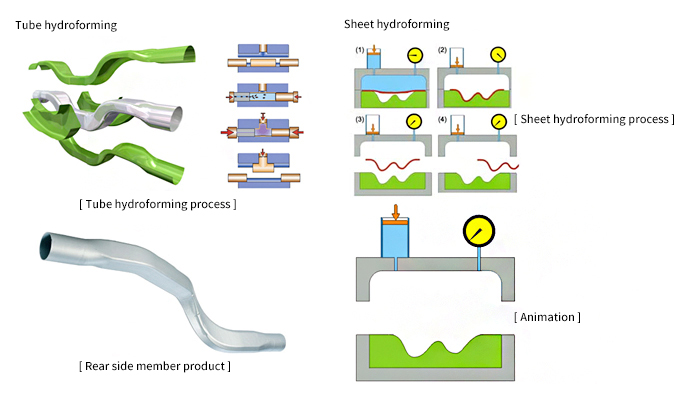

Hydroforming Method

Development Effect

1. Realization of light weight

  • 12.7% reduction while maintaining structural and impact stiffness

  • Response to environmental regulations thanks to emission reduction, and collision and safety regulations thanks to the high rigidity

2. Realization of cost reduction

  • Cost reduction due to removal of reinforcing material

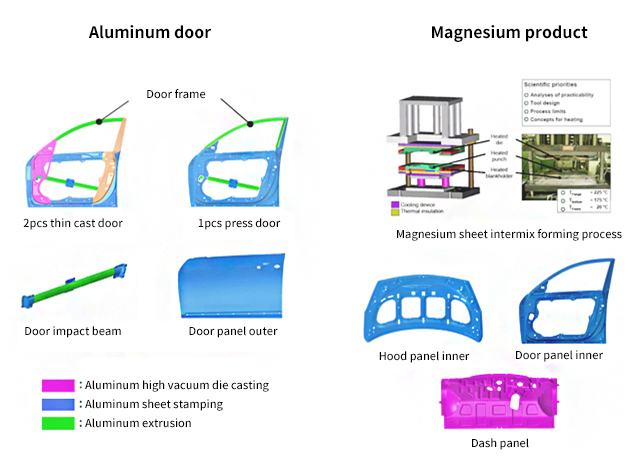

Lightweight Material Application Method

Development Effect

1. Aluminum door

  • 40% lighter than existing products

  • Derivation of optimal molding conditions through analysis

2. Magnesium dashboard

  • 40% lighter than existing products
  • Application of warm forming method

3. Future Tasks

  • Dissimilar material welding/joining technology development
  • Securing rigidity and productivity

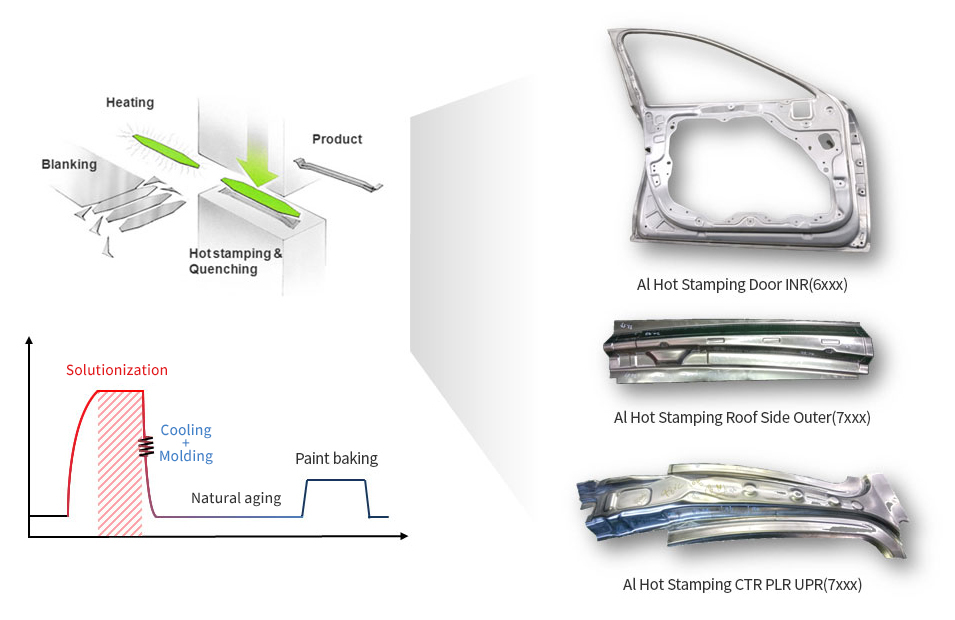

Aluminum-hot stamping method

Development Effect

1. Improved formability

  • Simultaneous product molding and cooling after solution heat treatment (SHT) by heating aluminum material

  • Possible to respond to body weight reduction by molding difficult-to-form parts

  • Applicable to 6,000 and 7,000 aluminum materials

2. Reduced number of parts

  • Possible to manufacture 2-piece or more engraving parts into 1-piece due to difficult molding
  • Possible to reduce mold and parts assembly cost due to reduction in the number of parts

3. Lightweighted car body

  • Possible to satisfy fuel economy and environmental regulations and reduce the vehicle weight by applying aluminum material lighter than steel to parts on large areas with difficult conditions to mold.

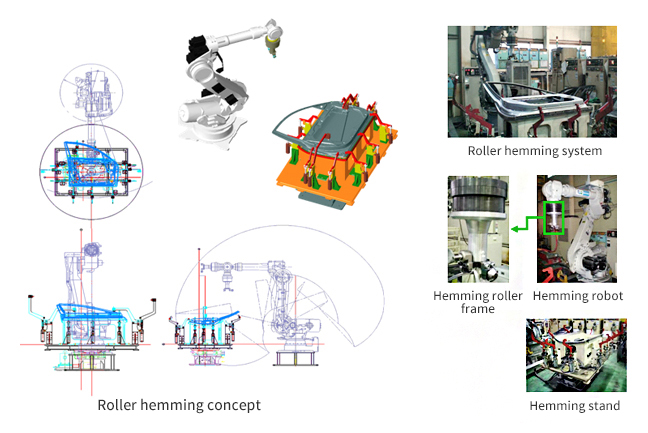

Roller Hemming Method

Development Effect

1. Response to small-volume production of various types

2. Support for A/S parts

3. Reducing investment cost

4. Lightweight materials (non-ferrous metals)

5. Improved design freedom of moving parts

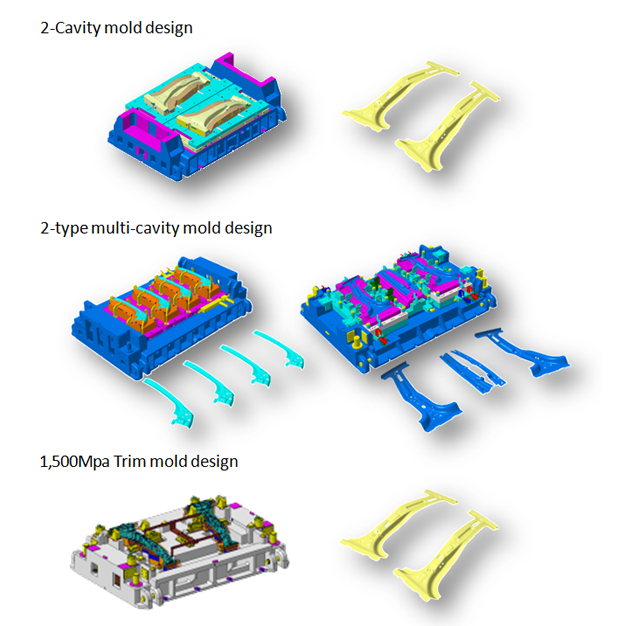

Mold Design

1. Introduction of molds

  • Applying hot stamping mold for parts that make up the core structure of the car body

2. Development Effects

  • Mold production that incorporates mold production technology to meet customer needs
  • Increase productivity by applying 2-type multi-cavity techniques
  • Improve productivity by applying trimming techniques
Technical Information

Myoung Shin Industry, which creates a flawless/new technology corporate culture,

produces diverse technologies and construction methods by running its own Technology Research Institute to meet customer needs

and produce improved quality products.

Hot Stamping Method

      Hot Stamping System Technology Project

Development Effect

1. Realize weight reduction

  • 15% lighter body weight by removing reinforcement while having equal or greater strength than traditional products
  • It is possible to respond to environmental laws and regulations regarding CO² in automobile exhaust gas by realizing car light weight

2. Realization of high strength

  • Through the heat treatment effect of boron steel, it is possible to manufacture a high-strength body of 1,500 MPa class
  • It is possible to respond to increasingly stringent vehicle crashes and safety regulations by realizing high strength

 3. Realization of localization

  • Through localization of the hot stamping line, it is possible to not only secure technology but also suppress the cost increase of products.

Local Heat Treatment Method

Development Effect

1. Realization of light weight

  • Weight reduction of 10% or more while maintaining strength equal to or greater than that of existing ones
  • In addition to responding to environmental regulations by realizing light weight, it is possible to respond to collision and safety regulations by increasing the strength of 1,400 MPa or more.

2. Realization of cost reduction

  • Cost reduction effect of more than 10% by developing local heat treatment method through high frequency induction heating

TWB (Tailor Welded Blank) Method

Development Effect

1. Realization of light weight

  • Light weight in the range having the same effect as existing products through structural analysis and test evaluation

  • It is possible to respond to environmental regulations by reducing fuel and exhaust gas

2. Realization of cost reduction

  • 6.13% cost reduction effect by developing TWB method
  • It is possible to respond to increasingly stringent vehicle crashes and safety regulations by realizing high strength

3. Welding Type

  • Laser Welding Type : Robot Type, Gantry Type
  • Mash Seam Welding Type

Laser Welding

Development Effect

1. Realization of production speed improvement with CO 2 and Nd:YAG laser welding

     -  RWS (Remote Welding System) provides high productivity compared to spot welding

        of existing methods

2. Weight reduction of the body by reducing the flange of the welded part and increasing the degree of freedom in car body design by one-side welding

3. Linear type welding increases the rigidity of the welded part compared to the existing method

4. Realization of production speed improvement with CO 2 and Nd:YAG laser welding

5. Easy to apply to welding of high-tensile steel, non-ferrous metals and dissimilar metals, real-time quality inspection possible

Future Tasks

1. FMS optimal system configuration

2. Optimal clamping method for work pieces

3. Improvement of shape precision of parts to be welded

Hydroforming Method

Development Effect

1. Realization of light weight

  • 12.7% reduction while maintaining structural and impact stiffness

  • Response to environmental regulations thanks to emission reduction, and collision and safety regulations thanks to the high rigidity

2. Realization of cost reduction

  • Cost reduction due to removal of reinforcing material

Lightweight Material Application Method

Development Effect

1. Aluminum door

  • 40% lighter than existing products

  • Derivation of optimal molding conditions through analysis

2. Magnesium dashboard

  • 40% lighter than existing products
  • Application of warm forming method

3. Future Tasks

  • Dissimilar material welding/joining technology development
  • Securing rigidity and productivity


Aluminum-Hot Stamping Method

Development Effect

1. Improved formability

  • Simultaneous product molding and cooling after solution heat treatment (SHT) by heating aluminum material

  • Possible to respond to body weight reduction by molding difficult-to-form parts

  • Applicable to 6,000 and 7,000 aluminum materials

2. Reduced number of parts

  • Possible to manufacture 2-piece or more engraving parts into 1-piece due to difficult molding
  • Possible to reduce mold and parts assembly cost due to reduction in the number of parts

3. Lightweighted car body

  • Possible to satisfy fuel economy and environmental regulations and reduce the vehicle weight by applying aluminum material lighter than steel to parts on large areas with difficult conditions to mold.


Roller Hemming Method

Development Effect

1. Response to small-volume production of various types

2. Support for A/S parts

3. Reducing investment cost

4. Lightweight materials (non-ferrous metals)

5. Improved design freedom of moving parts

Mold Design

1. Introduction of molds

  • Applying hot stamping mold for parts that make up the core structure of the car body


2. Development Effects

  • Mold production that incorporates mold production technology to meet customer needs
  • Increase productivity by applying 2-type multi-cavity techniques
  • Improve productivity by applying trimming techniques
